Handheld Fiber Laser Welding Machine
✧ Machine Features
1. Portable and small footprint
Lightweight and small footprint, precise laser control system, more weldable metals, beautiful weld seam, high quality, good consistency, low threshold of operation and use, maintenance-free.
2. High beam quality
Adopt 20μm fiber core diameter, higher beam quality, more concentrated energy, stronger metal penetration and faster welding speed.
3. Intelligent phase change heat dissipation
More efficient than ordinary air-cooled cooling, with intelligent adjustment of temperature changes, effective protection of the laser.
4. Preset process parameters
8 groups of custom + 24 groups of pre-made process parameters, 30 minutes to get started quickly.
5. Touch operation
7-inch touch screen panel, equipped with intelligent operating system, more intuitive and easy to operate.
6. Highly efficient and maintenance-free
Welding 4-10 times than traditional welding, energy saving 80-90%, quality assurance, maintenance-free and save money.
✧ Application Advantages
Joylaser laser's handheld continuous laser welding machine is welding machine is widely used in many industries ,such as kitchen, household appliances, advertising, molds, stainless steel doors and widows ,handicrafts, household products, furniture, auto parts and so on.
✧ Technical Parameter
| Output power | 1200w |
| Working mode | Continuous and pulsed |
| Laser wavelength | 1080nm |
| Laser frequency | 0-300Hz |
| Swing width | 0-4mm |
| Power Rating | 4500W |
| Output method | QCS |
| Operating Environment | Storage temperature:-10℃-60℃
Working temperature:0℃-40℃ |
| Electrical requirements | 220VAC/50Hz/60Hz |
| Weight | ＜38kg |
| Volume | 667mm×276mm×542mm ＜0.1m³ |

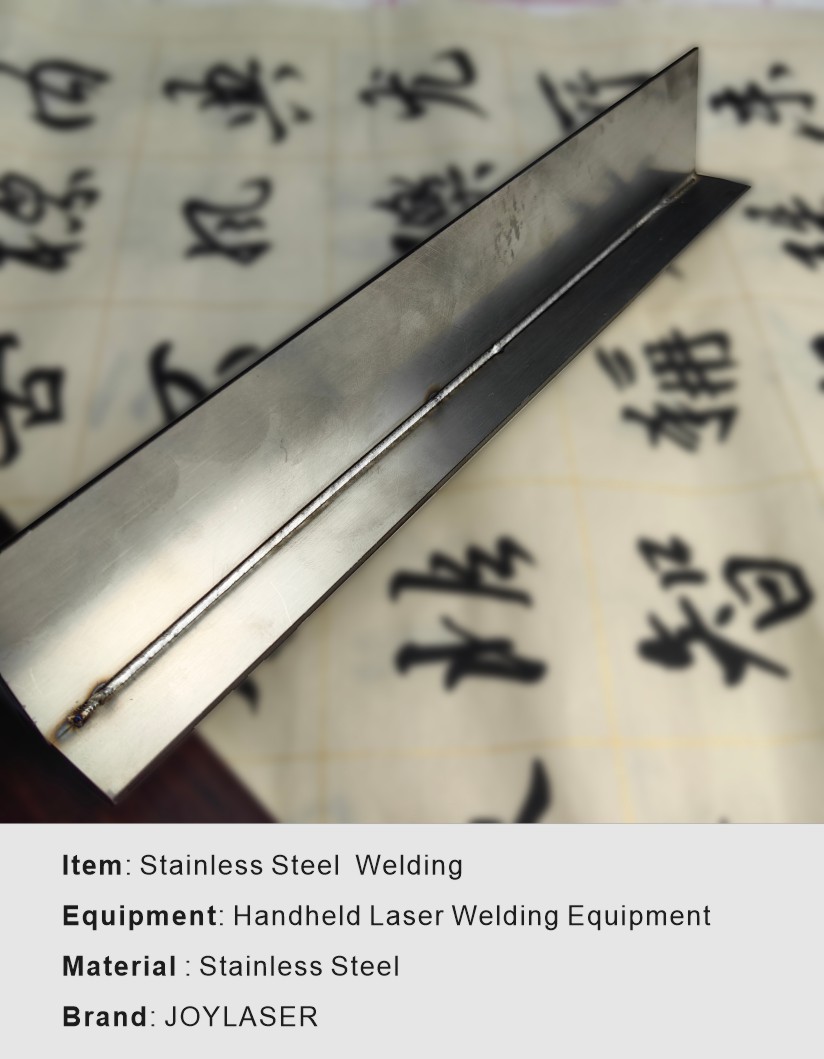

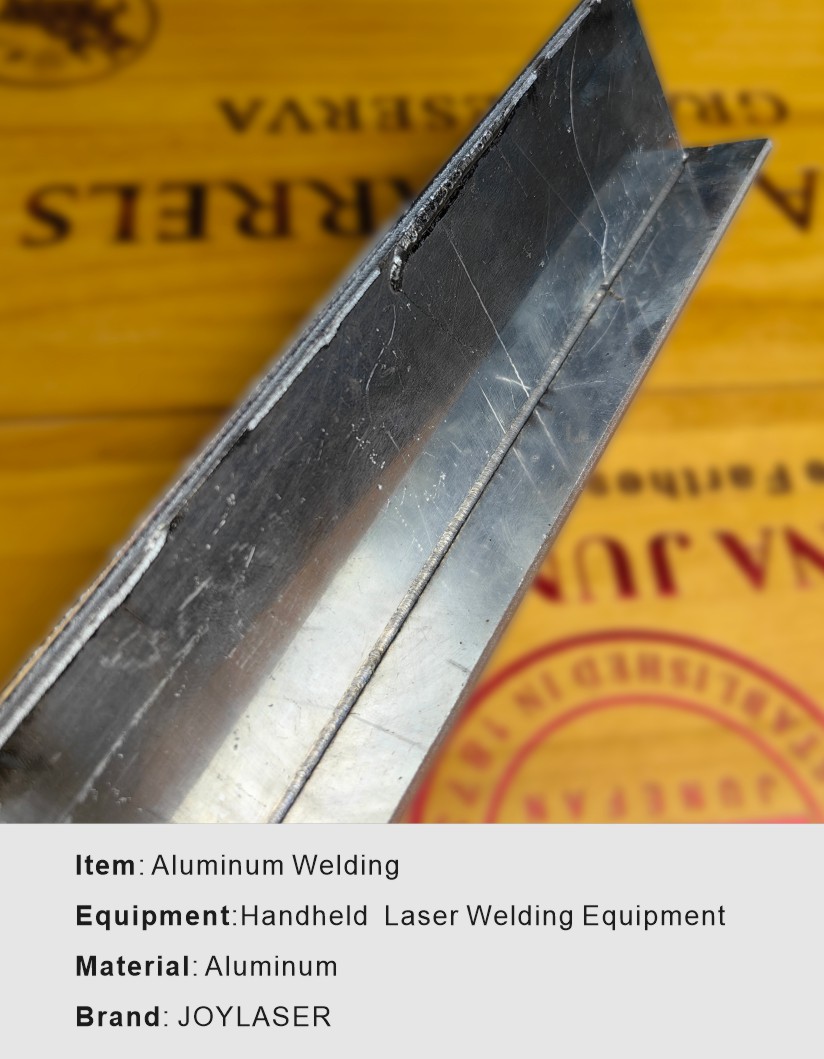

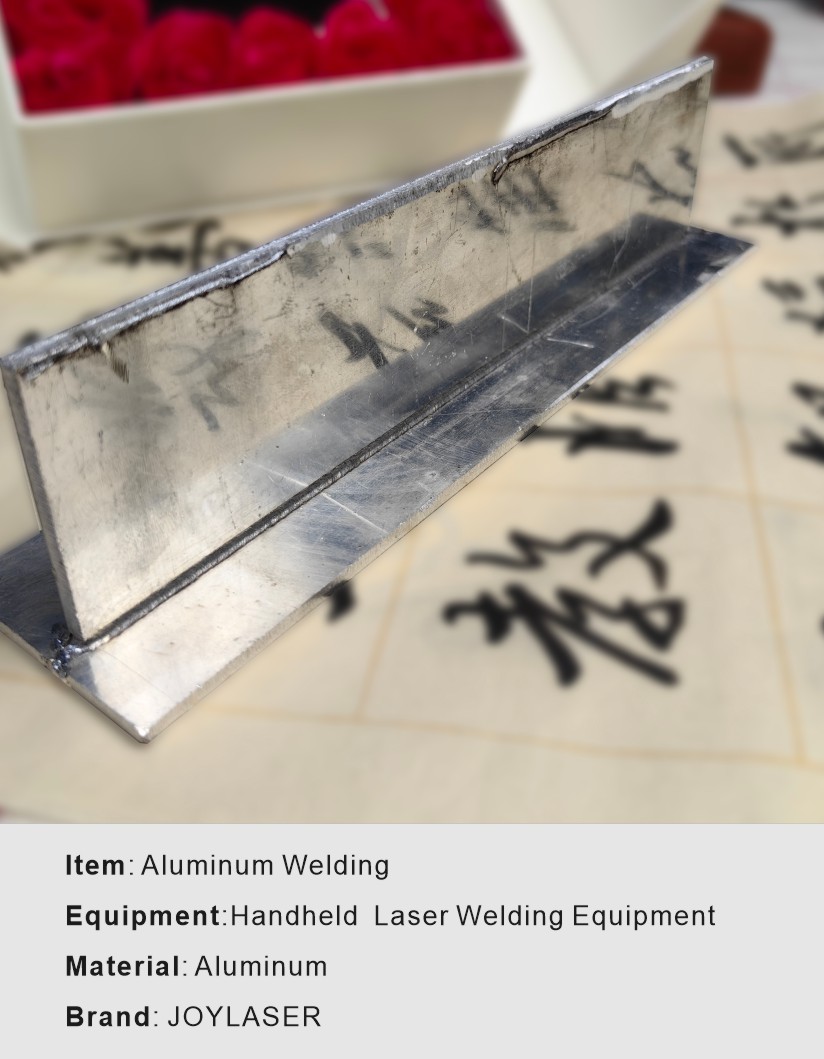

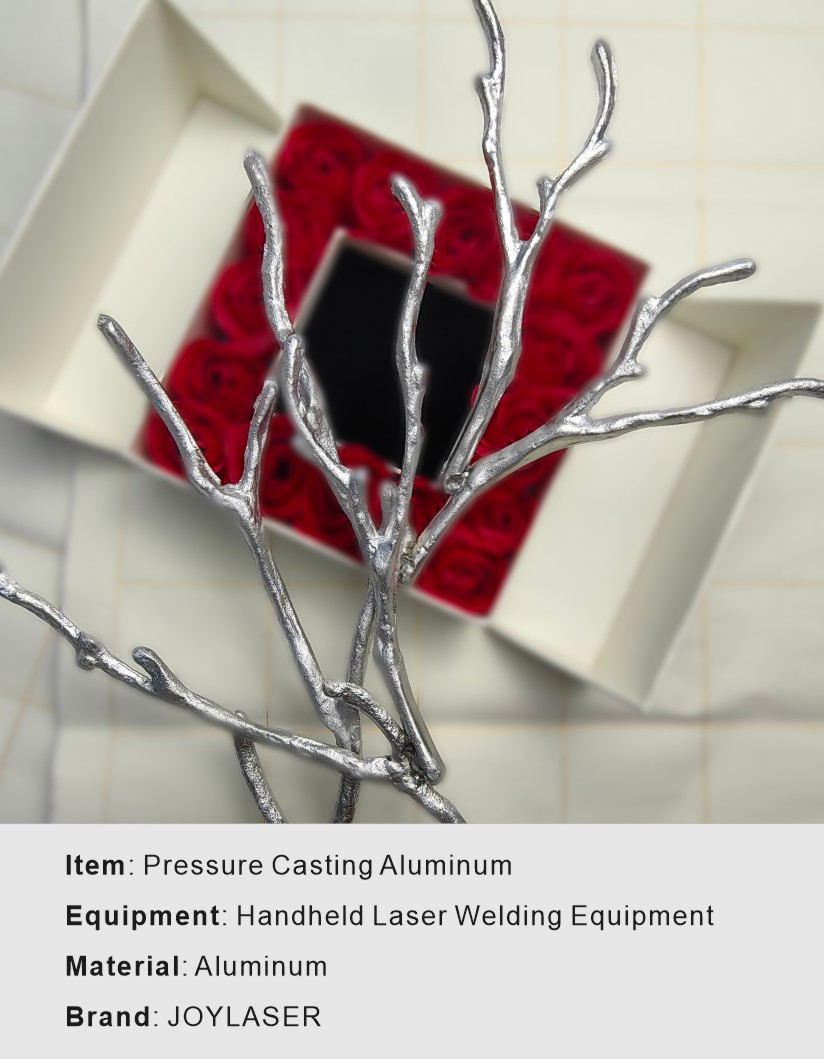

✧ Sample Of Product
