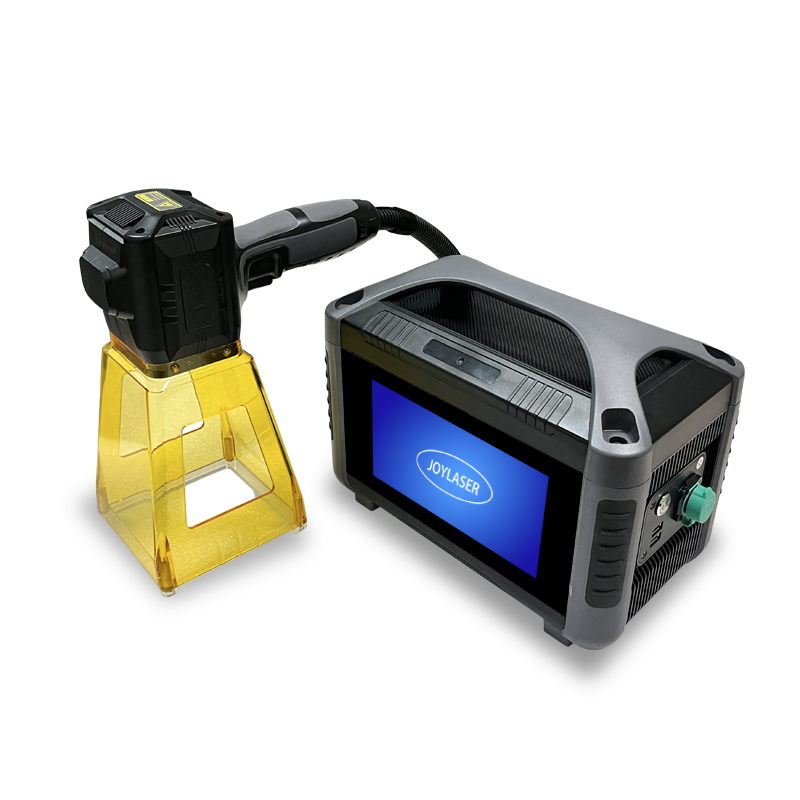

Mini Hand-held laser marking machine

Short Description:

Hand-held laser marking machine is specially designed to solve various marking difficulties. Advanced laser technology is used to realize fast focusing and high-precision marking. With highly integrated design, the body is small and light, and the battery is detachable, which can provide unlimited endurance and improve work efficiency. Hand-held laser equipment has a wider range of use and higher flexibility, which can meet the daily needs of customers.

Send email to us

Product Detail

Product Tags

✧ Machine Features

Hand-held laser marking machine uses a laser beam to make permanent marks on the surface of various materials. The effect of marking is to expose the deep material through the evaporation of the surface material, or to "carve" the trace through the chemical and physical changes of the surface material caused by the light energy, or to burn part of the material through the light energy to display the required etching patterns and characters.

✧ Application Advantages

Compared with the bulky traditional marking machine, the hand-held laser marking machine is smaller in size and more portable and flexible in use. Aiming at the problem of the endurance of the handheld laser marking machine on the market, the technical reform has been made. The new generation of handheld laser marking machine has two endurance modes:
1.220V plug-in version: plug in and use, convenient and fast
2. Charging version: detachable battery design, charging mode: offline or built-in; With the backup battery, you can have unlimited battery life

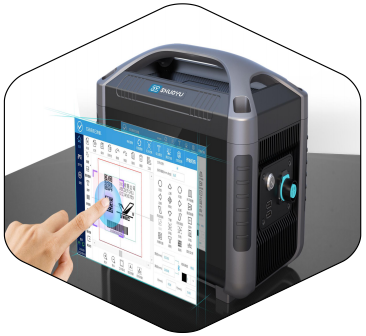

✧ Operation Interface

1. Configure the Linux system

8-core processor with high security level Stable performance

and fast response

2. Large color touch screen

8-inch full-fit LCD screen, one-button trigger; One machine can be used for

multiple purposes, and the hardware is diversified and compatible

✧ Technical Parameter

Equipment power	20W
Laser type	Fiber laser generator
Laser wavelength	1064nm
Deflection seismoscope	High-precision two-dimension scanning system
Engraving range	100x100mm
Carving line speed	≤7000mm/s
Marking line type	Dot-matrix and vector all-in-one machine
Minimum line width	0.03mm
Positioning method	Red light positioning and focusing
Repetition accuracy	0.01mm
Number of engraved character lines	Any line within the valid marking range
Printing speed	800 characters (related to material and printing content)
Source	110V/220V AC.lithium cell(216wh)
Overall power consumption	145-250W
Operating temperature of the whole machine	0-40°
