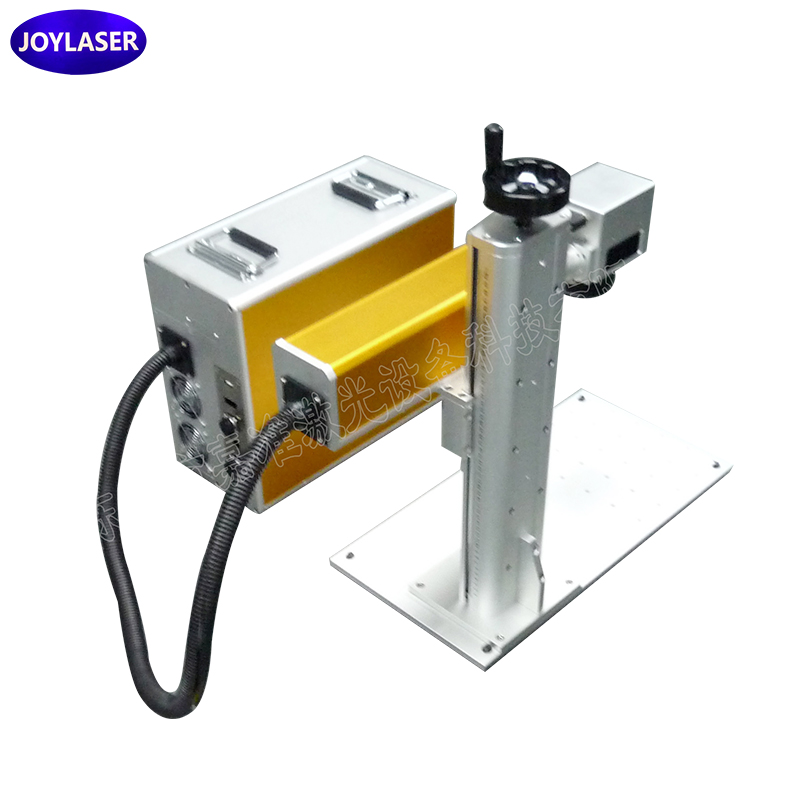

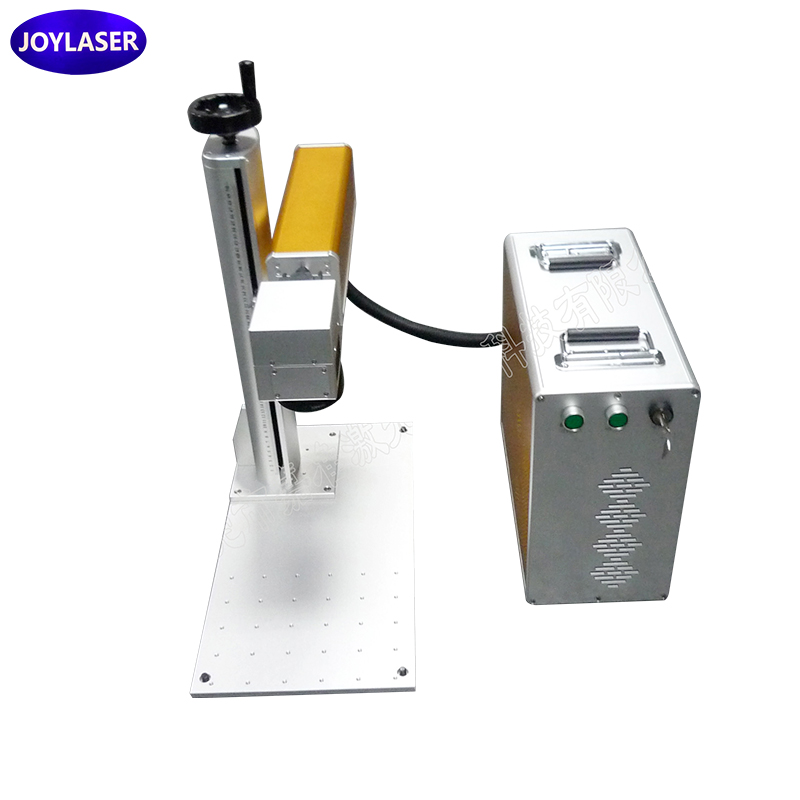

Desktop Fiber Laser Marking Machine

Short Description:

Desktop optical fiber laser marking machine has high electro-optical conversion efficiency and small size. With high reliability, ultra-long operating life, environmental protection and energy conservation, it can be applied to fields with high requirements for depth, smoothness and fineness, and can carve metal materials and some non-metallic materials.


Product Detail

Product Tags

  Desktop Fiber Laser Marking Machine

✧ Machine Features

Portable laser marking machine has high electro-optical conversion efficiency and adopts air cooling mode, compact size,good output beam qulity , high reliability, super long service life ,energy saving, Engravable metal materials and some non-metallic materialslt is mainly used in the fields with high requirements for depth,smoothness and fineness.

✧ Application Advantages

The fiber laser marking machine uses optical fiber to output laser, and then realizes the marking function through the high-speed scanning galvanometer system. The electro-optical conversion efficiency is very high, and it is very power-saving. The speed of fiber laser marking is fast, and the marking can be formed at one time, and the content of the marking will not fade due to the harsh environment (except for grinding and damage by external forces). Equipment adopts the air cooling method, it  has a long service life, can work continuously for 24 hours, and the maintenance-free time of the laser is as long as fifty thousand hours. Fiber laser marking machines are mainly used in fields that require high depth, smoothness, and fineness, such as marking various hardware, stainless steel, metal oxides, gold, silver, and copper, etc.

Fiber laser marking has high processing efficiency, the laser beam can move under computer control (speed up to 7 m/s), and the marking process can be completed within a few seconds. And it is an automatic operation equipment, the laser beam energy density is high, the focus spot is small, the processing speed is fast, and the heat-affected area on the workpiece is small. The marking of fiber laser marking is permanent. It is precisely because of this feature that many industries use laser technology to mark two-dimensional codes and anti-counterfeiting codes on products to achieve traceability and anti-counterfeiting of products. Fiber laser marking can print various characters, symbols and patterns, etc. The character size can range from millimeters to microns. The marking content is flexible and changeable. It is more suitable for users with many types of products. It does not need plate making and is simple and fast.

The most important thing is that fiber laser marking processing is a safe and clean processing method that is non-toxic, harmless, and pollution-free.







      Desktop Fiber Laser Marking Machine
operation-page

✧ Operation Interface

The software of JOYLASER marking machine needs to be used in conjunction with the hardware of the laser marking control card.
It supports various mainstream computer operating systems, multiple languages, and software secondary development.

It also supports common bar code and QR code , Code 39, Codabar, EAN, UPC, DATAMATRIX, QR CODE, etc.

There are also powerful graphics, bitmaps, vector maps, and text drawing and editing operations can also draw their own patterns.

✧ Technical Parameter

Equipment model JZ-FBX-20W JZ-FBX30W JZ-FBX50W
Laser type Fiber laser
Engraving range 160mmx160mm(optional)
Laser wavelength 1064nm
Laser frequency 20-120KHz
Engraving line speed ≤7000mm/s
Minimum line width 0.02mm
Minimun character >0.5mm
Repetition accuracy
±0.1μm
Cooling mode Air cooling
Beam quality <1.3㎡
样品_2
样品_1
样品_8
样品_3

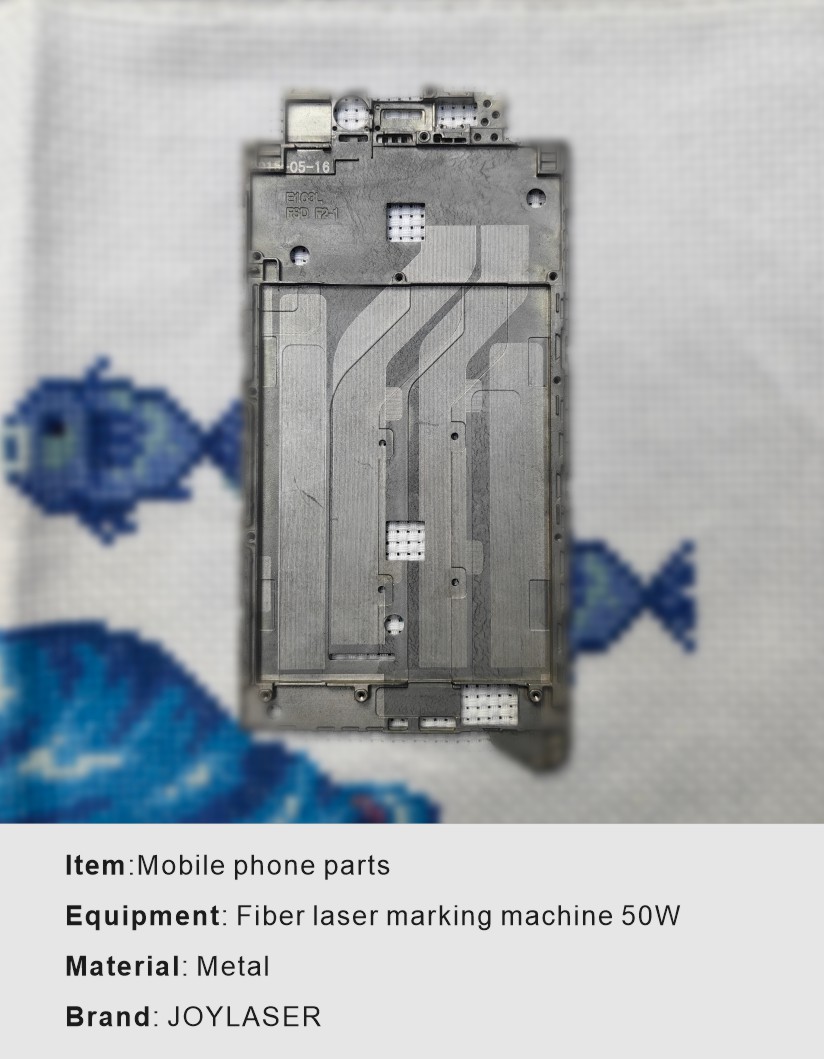

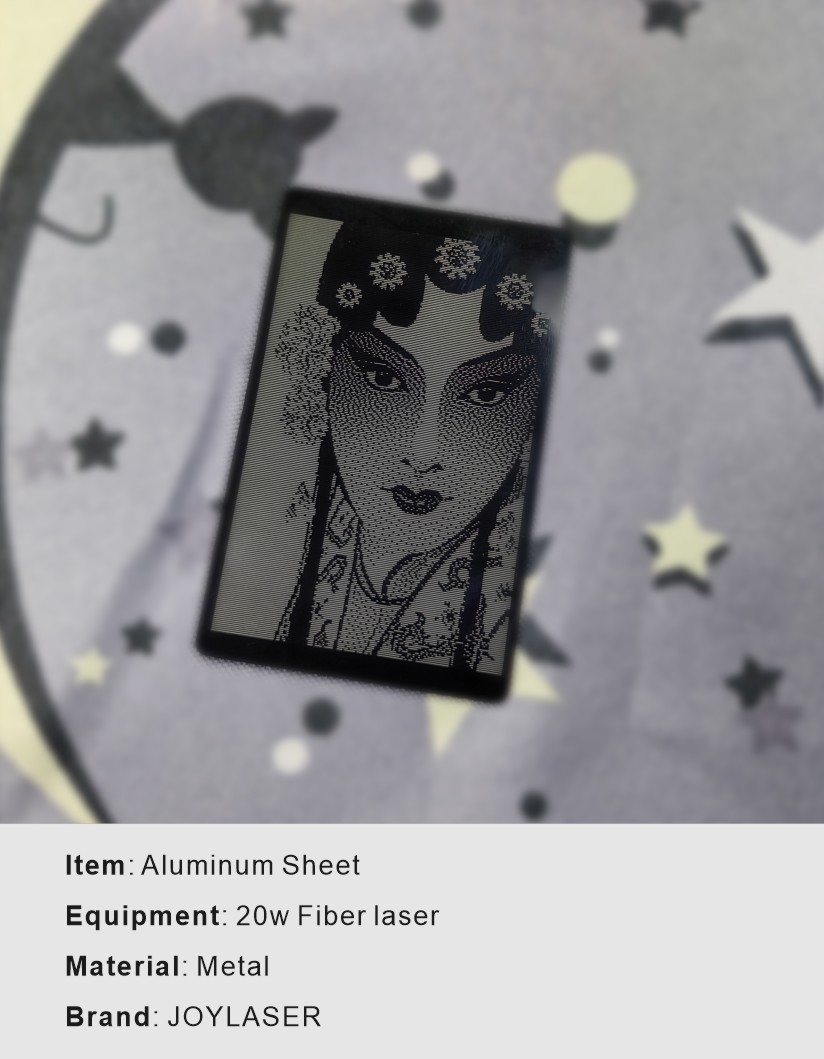

✧ Sample Of Product

Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.Dishware ,food ,drinking,smoking and alcohol,etc.
