Mopa Fiber Laser Marking Machine

Short Description:

MOPA laser fiber laser with perfect characteristics and good pulse shape control. Laser design life of up to 50,000 hours. Meanwhile, MOPA fiber laser pulse frequency and pulse width are controlled independently, change in frequency does not affect the pulse width, in addition, the use of different pulse-width difference of the material processing characteristics, wide and narrow pulse each other ancillary processing, laser is applied to make broader marking material. Processing results easier to meet the demanding requirements of customers, the impossible becomes a Q-switched laser MOPA laser possible.

Send email to us

Product Detail

Product Tags

✧ Machine Features

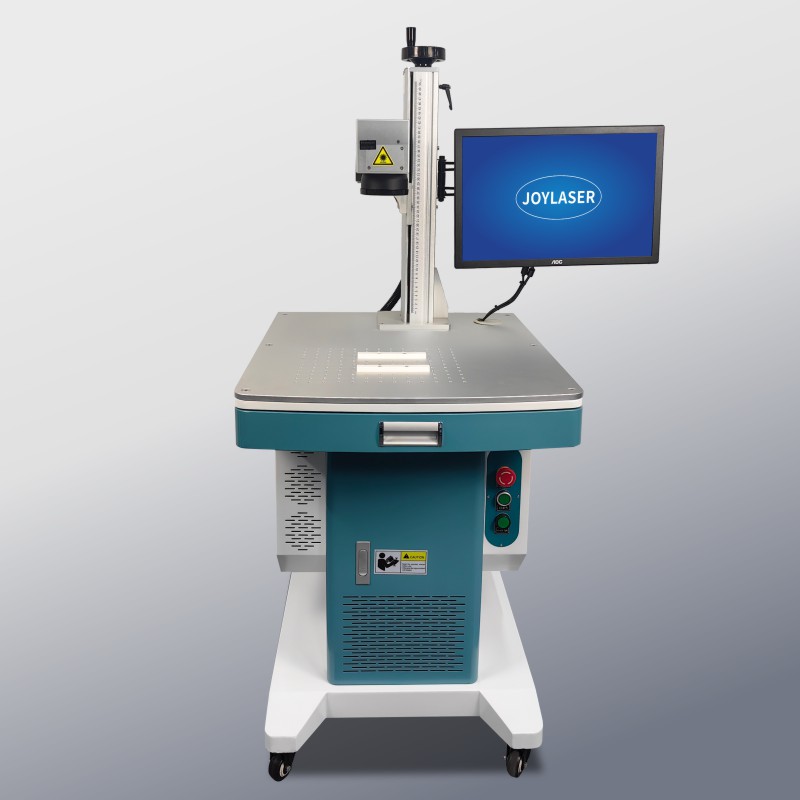

Benchtop laser fiber marking machine use the laser of fiber laser to irradiate the laser to the surface of the object, so mark the surface of a variety of different substances that will not disappear. Marking machine is to expose the deep material outside, can be through the evaporation of the original surface material.That's one way to label it.

The another method of marking is to use the light energy to cause a series of physical and chemical reaction in the material on the surface to produce traces. It can also use light energy to burn off excess material to obtain required code, for example, bar code, and other graphic or textual code.

1) Engraving range (optional)

2) No noise.

3) High speed engraving.

4) High durability.

5) For marking of materials with high reflectivity.

6) During the warranty period of the contract, equipment maintenance is free, and the whole machine is maintained for whole life.

Technical support is still provided after the warranty expires.

✧ Application Advantages

All applications include MOPALP, MOPAM1 laser machine, and can be used with a first pulse; zero-delay efficient marking; absolutely no light leakage; GUI system control; more pulse width modulation; wider frequency adjustment, bitmap marking more efficient.

✧ Operation Interface

The software of JOYLASER marking machine needs to be used in conjunction with the hardware of the laser marking control card.
It supports various mainstream computer operating systems, multiple languages, and software secondary development.

It also supports common bar code and QR code , Code 39, Codabar, EAN, UPC, DATAMATRIX, QR CODE, etc.

There are also powerful graphics, bitmaps, vector maps, and text drawing and editing operations can also draw their own patterns.

✧ Technical Parameter

Equipment model	JZ-FA-20 JZ-FA-30 JZ-FA-60 JZ-FA-100 JZ-FA-200
Laser type	Fiber laser
Laser power	20W /30W / 60W/ 100W /200W
Laser wavelength	1064nm
Laser frequency	1-4000KHz
Engraving range	150mm × 150mm (optional)
Engraving line speed	≤7000mm/s
Minimum line width	0.02mm
Minimum character	＞ 0.5mm
Repetition precision	± 0.1 μ m
Working voltage	AC220v/50-60Hz
Cooling mode	Air cooling
