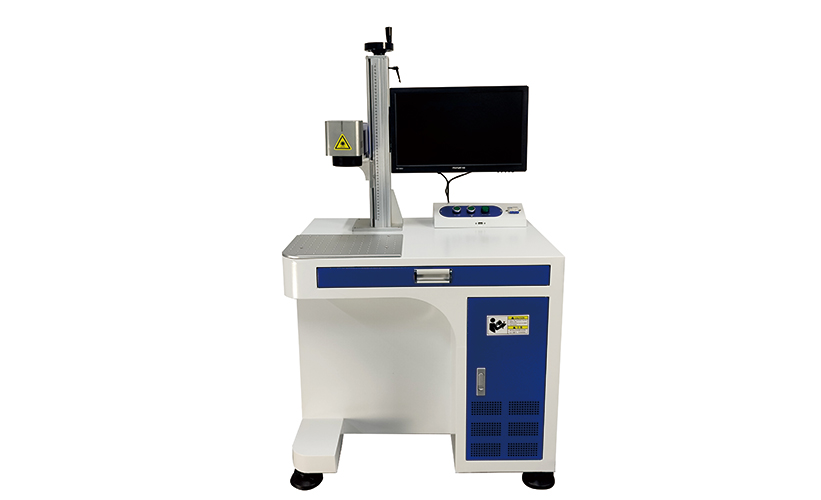

Optical Fiber Laser Marking Machine
✧ Machine Features
Benchtop laser fiber marking machine use the laser of fiber laser to irradiate the laser to the surface of the object, so mark the surface of a variety of different substances that will not disappear. Marking machine is to expose the deep material outside, can be through the evaporation of the original surface material.That's one way to label it.
The another method of marking is to use the light energy to cause a series of physical and chemical reaction in the material on the surface to produce traces. It can also use light energy to burn off excess material to obtain required code, for example, bar code, and other graphic or textual code.
1) Engraving range (optional)
2) No noise.
3) High speed engraving.
4) High durability.
5) For marking of materials with high reflectivity.
6) During the warranty period of the contract, equipment maintenance is free, and the whole machine is maintained for whole life.
Technical support is still provided after the warranty expires.
✧ Application Advantages
Superior performance, more stable and reliable equipment! High quality fiber laser, strong beam quality, high peak field lens, double red light positioning system, precise positioning. It has the advantages of less consumables, non-toxic, non-polluting, etc.
1. Self-developed system, the company guarantees one-by-one teaching for each user to operate.
2. The fiber laser source we use is the laser source carefully selected by JPT, which has high-quality spot size and long life span of more than 50,000 hours.
3: The product is suitable for all metal materials such as steel, iron, copper, aluminum, gold, silver and some non-metal materials such as PC and ABS. Mainly used in electronic products, electronic cigarettes, clocks, jewelry and other fields that require high finish.
✧ Operation Interface
The software of JOYLASER marking machine needs to be used in conjunction with the hardware of the laser marking control card.
It supports various mainstream computer operating systems, multiple languages, and software secondary development.
It also supports common bar code and QR code , Code 39, Codabar, EAN, UPC, DATAMATRIX, QR CODE, etc.
There are also powerful graphics, bitmaps, vector maps, and text drawing and editing operations can also draw their own patterns.
✧ Technical Parameter
| Equipment model | JZ-FQ20 JZ-FQ30 JZ-FQ50 JZ-FQ100 |
| Laser type | Fiber laser |
| Laser power | 20W/30W/50W/100W |
| Laser wavelength | 1064nm |
| Laser frequency | 20-120KHz |
| Engraving rage | 150mmx150mm(optional) |
| Carving line speed | ≤7000mm/s |
| Minimum line width | 0.02mm |
| Minimum character | ＞0.5mm |
| Repetition precision | ±0.1μm |
| Working voltage | AC 220v/50-60Hz |
| Cooling mode | Air cooling |

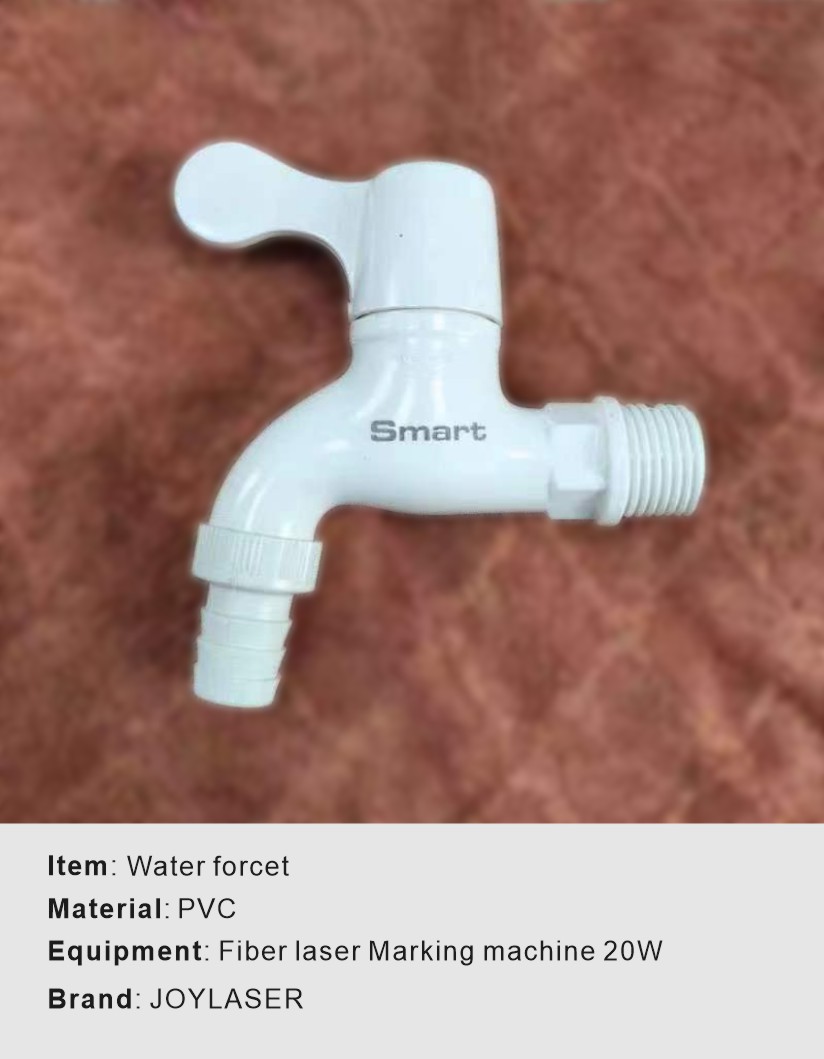

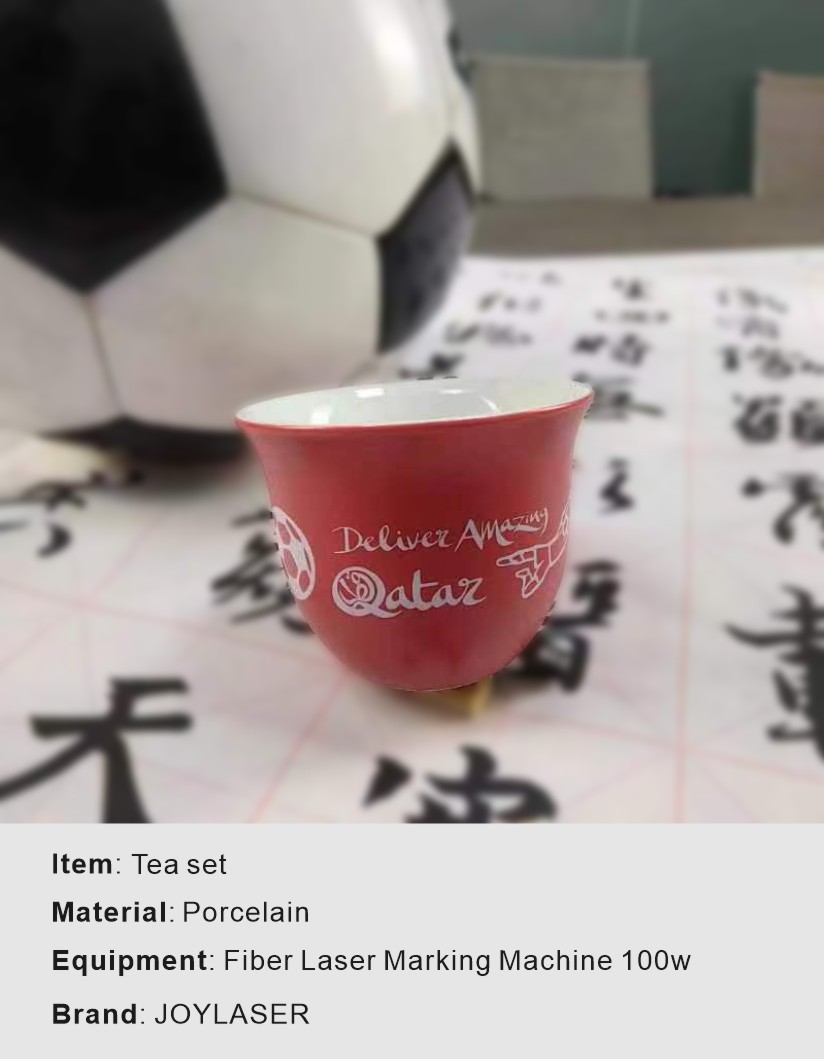

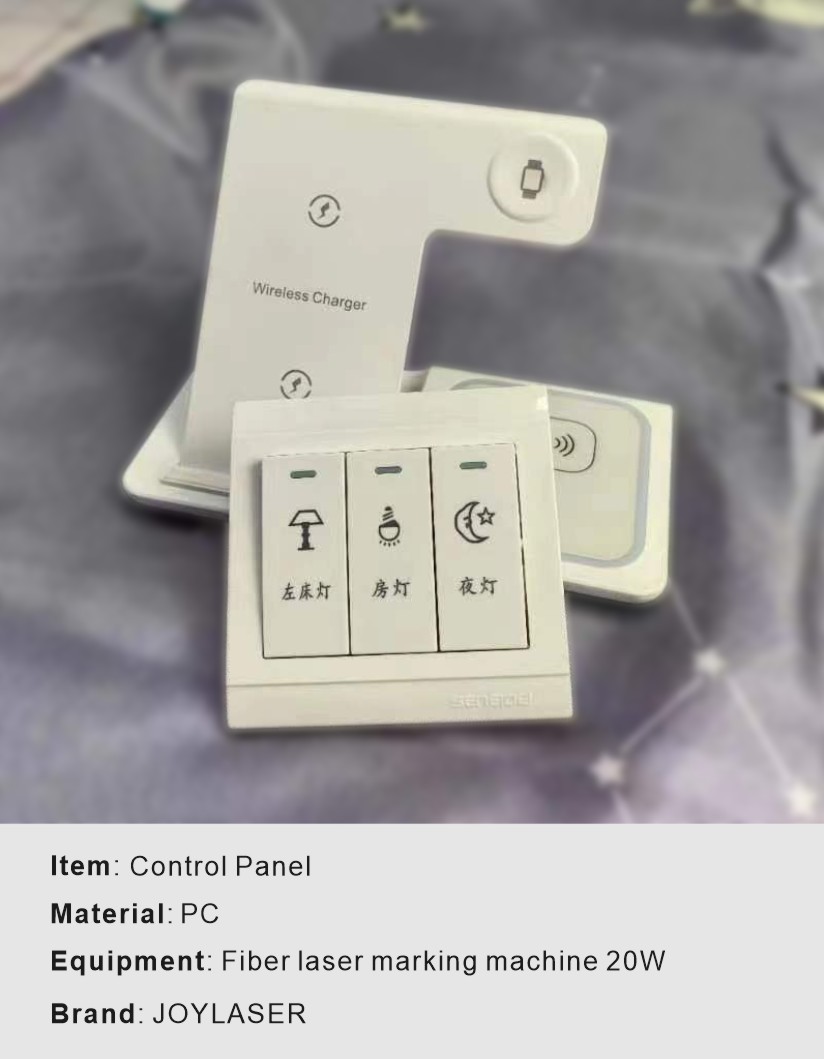

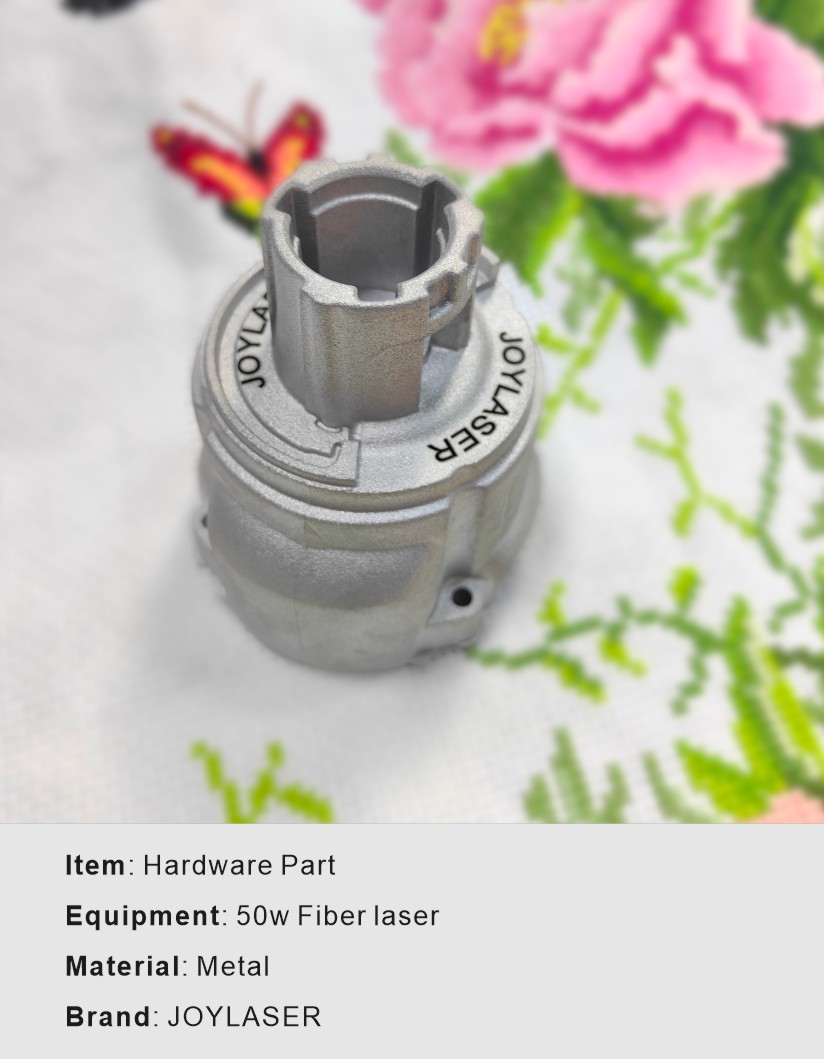

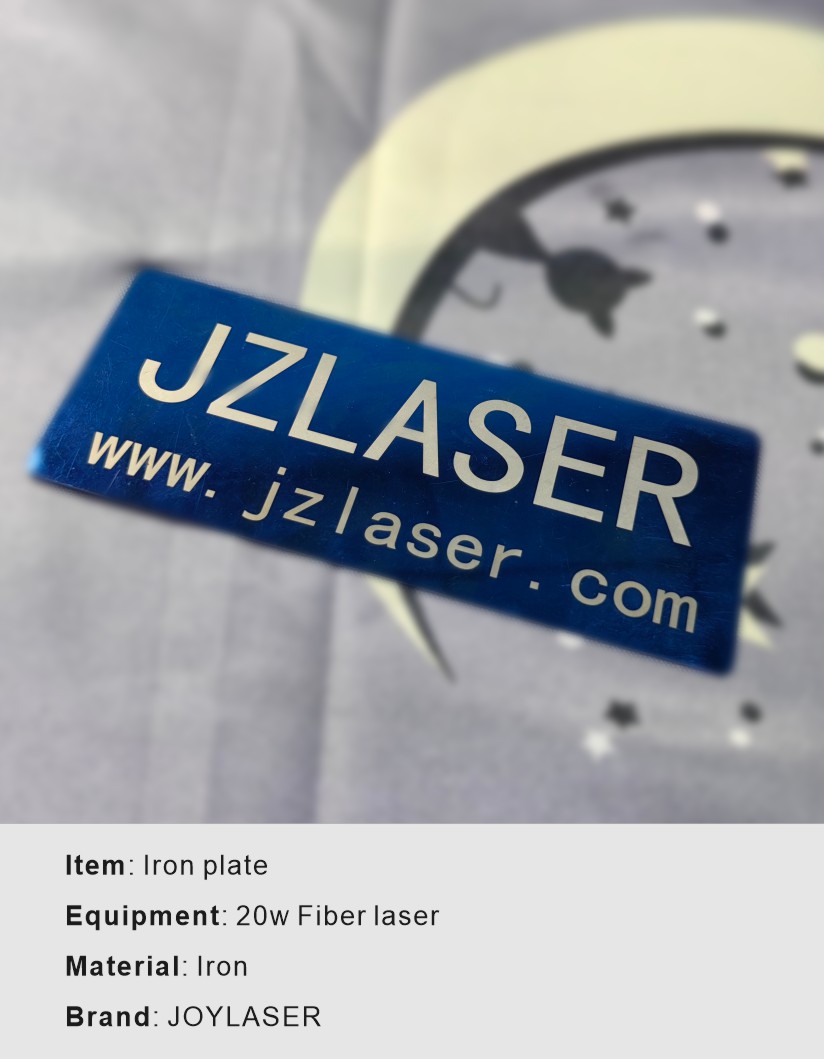

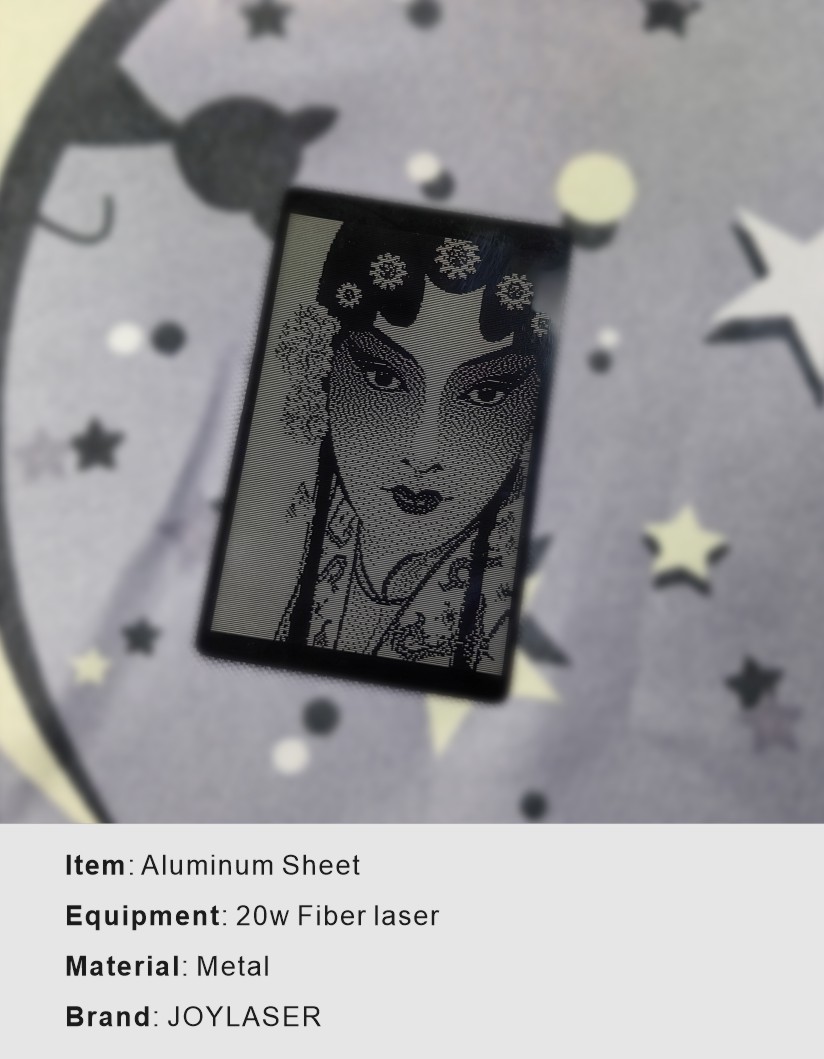

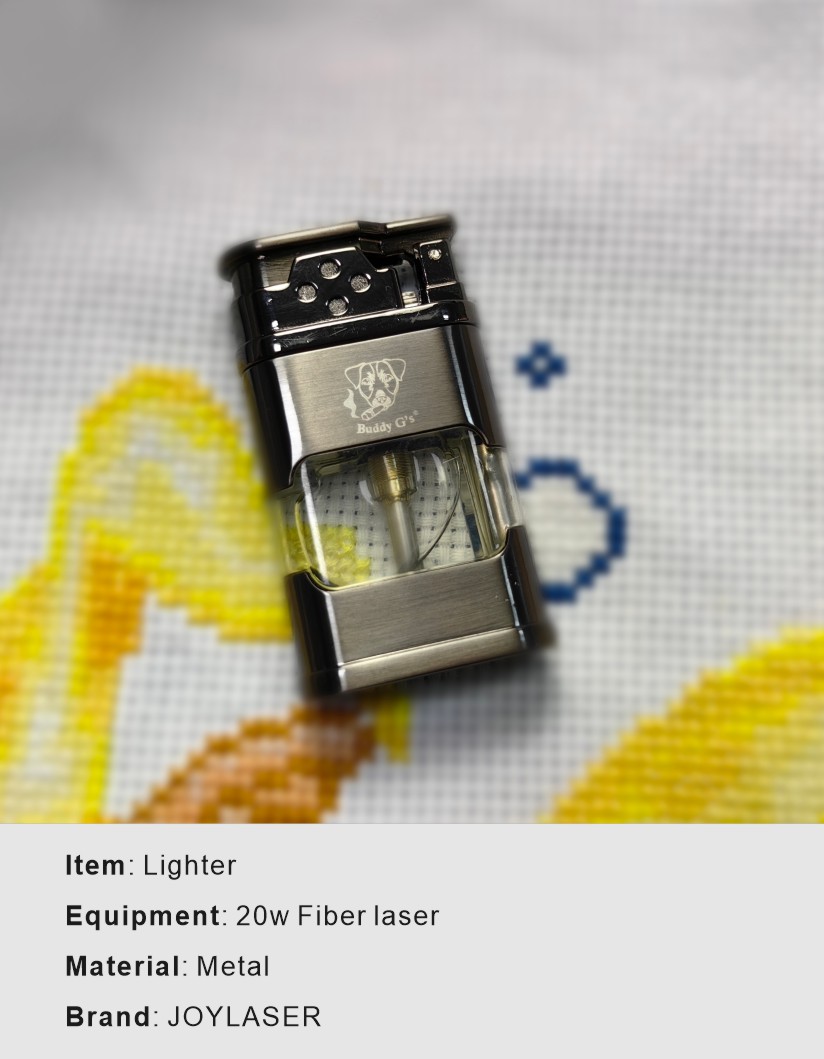

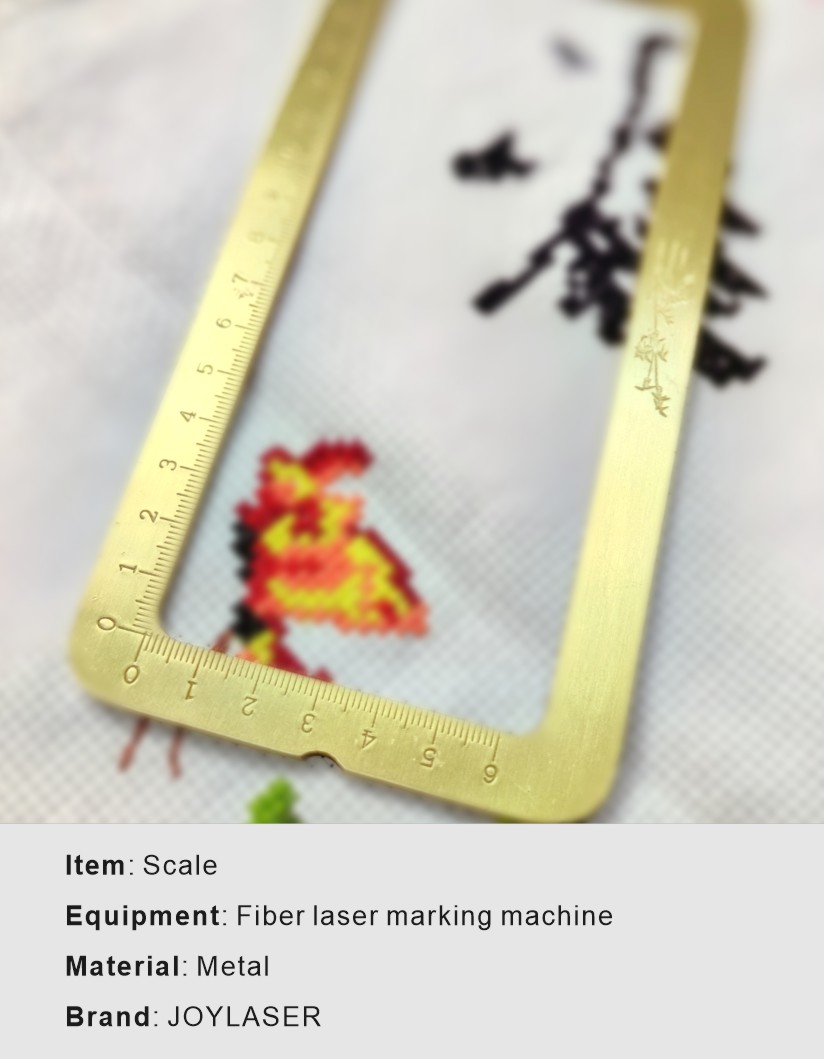

✧ Sample Of Product
Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.Dishware ,food ,drinking,smoking and alcohol,etc.
