Desktop Optical Fiber Laser Marking Machine

Short Description:

With the development of laser technology, the application field of laser marking machine is more and more extensive. The traditional laser marking machine is inconvenient to move, which limits the use range of laser marking machine.

Product Detail

Product Tags

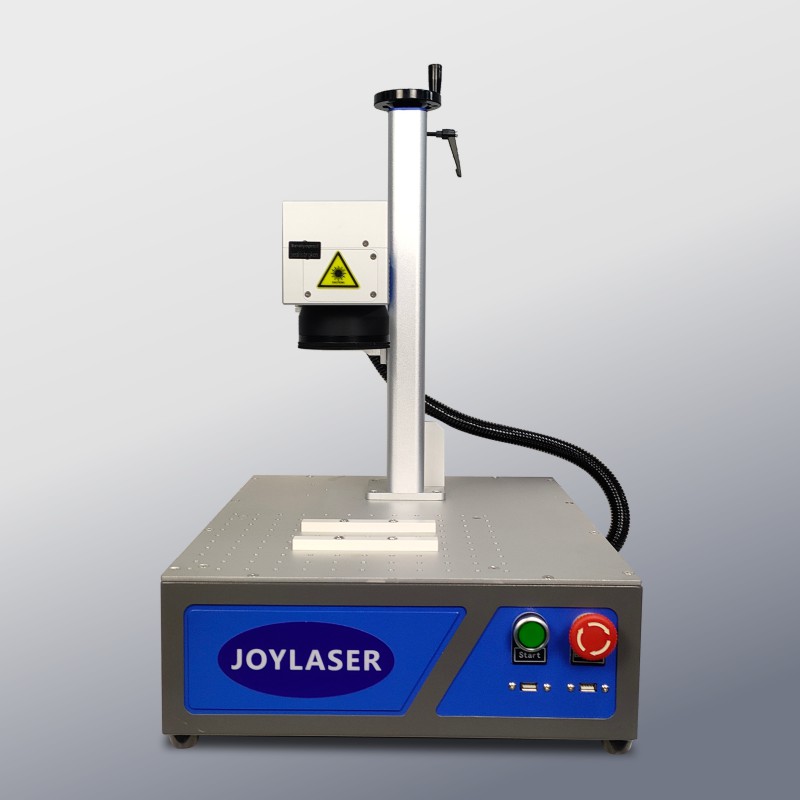

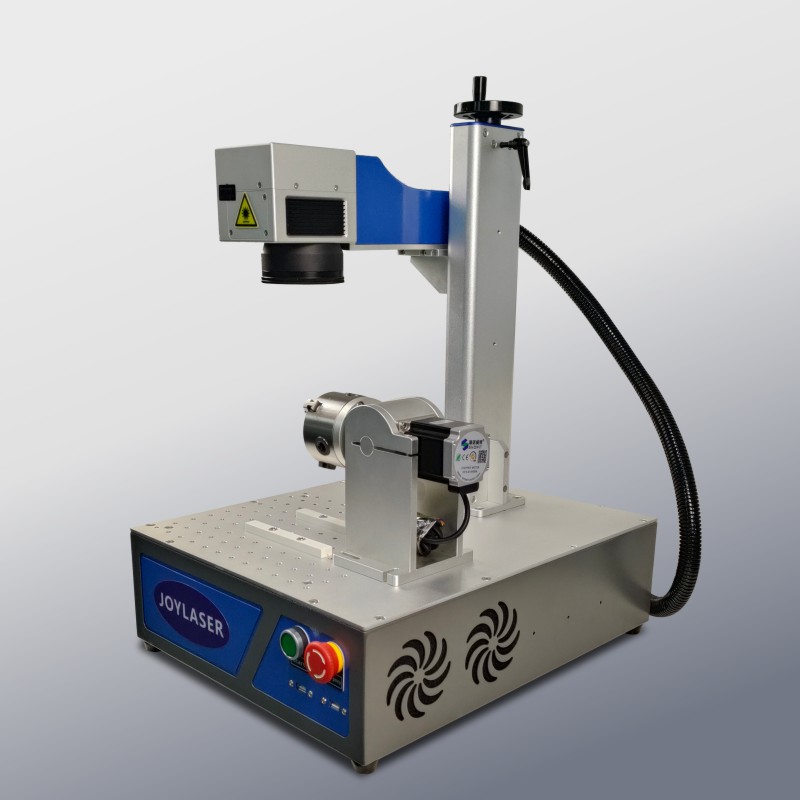

Desktop Optical Fiber Laser Marking Machine

✧ Machine Features

Portable laser marking machine has become a new force in laser marking machine. The portable optical fiber laser marking machine is designed with a portable integrated structure. The whole equipment weighs only 20kg  is really convenience. It is developed by our company using the relatively advanced laser technology in the industry. Laser marking machine system is new generation . The fiber laser is used to output the laser, and then the marking function is realized through the high-speed scanning galvanometer system. The electro-optical conversion efficiency of the optical fiber laser marking machine is high. Air cooling is adopted for cooling. The whole machine is compact, with good quality  output beam and high reliability. Engraving metal materials and some non-metallic materials adopt an integrated overall structure, free of optical pollution and power coupling and loss, air cooling, high efficiency, long service life and less maintenance.


✧ Application Advantages

The biggest advantage of the portable laser marking machine is that it is free of installation, convenient and fast, and can be directly placed on the desktop and connected to a computer for use.

Low cost, small size, easy to carry, and one machine can be used for multiple purposes. The marking effect is high precision, high definition, stable performance, long service life of the laser, low power consumption of the whole machine, and low cost.

Lightweight and practical, compared with other standard desktop laser marking machines, the portable laser marking machine is more flexible in use, more convenient to hold, and can ensure that the marking font is clear, uniform and beautiful.

The whole machine is easy to operate, can be operated by hand, and is easy to carry.

The portable laser marking machine is smaller than the standard desktop laser marking machine in size, and it is more convenient to carry. It can carry out accurate laser marking on the product anytime and anywhere. At the same time, because of its small size and easy operation,

Desktop Optical Fiber Laser Marking Machine

✧ Operation Interface

The software of JOYLASER marking machine needs to be used in conjunction with the hardware of the laser marking control card.
It supports various mainstream computer operating systems, multiple languages, and software secondary development.

It also supports common bar code and QR code , Code 39, Codabar, EAN, UPC, DATAMATRIX, QR CODE, etc.

There are also powerful graphics, bitmaps, vector maps, and text drawing and editing operations can also draw their own patterns.

✧ Technical Parameter

Equipment model JZ-FBX-20W JZ-FBX30W JZ-FBX50W
Laser type Fiber laser
Laser power 20W/30W/50W/100W
Laser wavelength 1064nm
Laser frequency 20-120KHz
Carving line speed ≤7000mm/s
Minimum line width 0.02mm
Repetition accuracy ±0.1μm
Working voltage AC220v/50-60Hz
Cooling mode Air cooling

✧ Sample Of Product

It is widely used in metal and most nonmetals, sanitary ware, metal deep carving, small household appliances auto parts, electronic cigarette, LED industry, mobile power and other industries for marking
