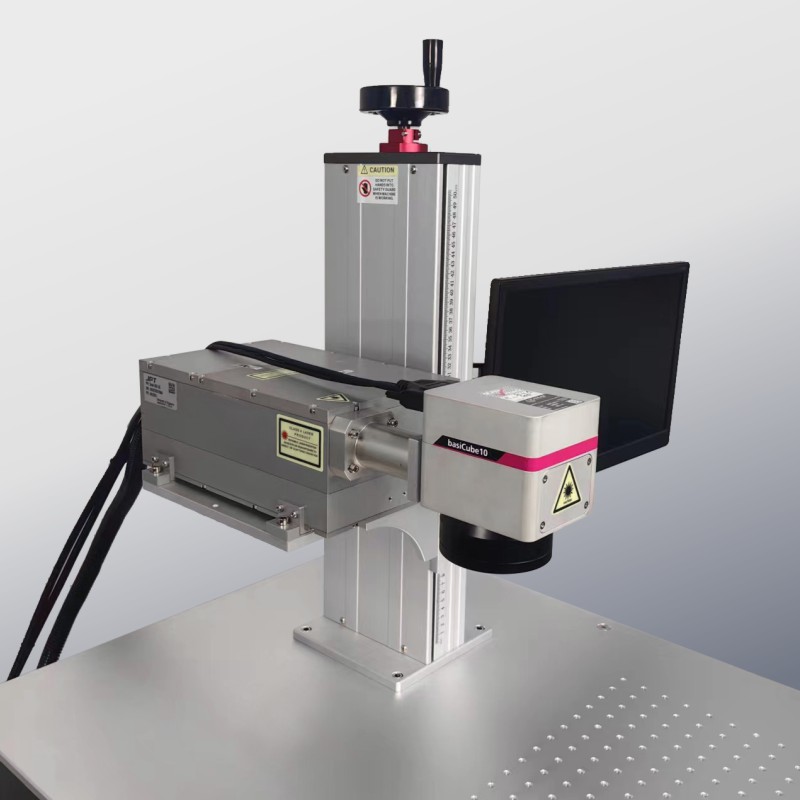

UV Laser Marking Machine

Short Description:

UV laser marking machine belongs to the series of laser marking machine, it adopts 355nm UV laser to develop and research , 355nm  UV light focus spot is extremely small, so it can largely reduce the mechanical deformation of the material and processing heat impact is small.

UV laser has no heat effect produced, the marking and cutting result is precise and smooth, no heat effect, no scorching problem . Except for copper, many materials are absorbing to 355nm UV light, so  UV laser can be suitable for processing more material types.

Ultraviolet laser is the preferred product for customers with higher requirements for marking effect because of its extremely small focused spot and minimal heat-affected zone for processing, thus allowing ultra-fine marking and marking of special materials.

Product Detail

Product Tags


✧ Machine Features

Ultraviolet laser marking machine has the advantages of short wavelength, short pulse, excellent beam quality, high precision, high peak power, etc. Therefore, the system has excellent application characteristics in the field of special material processing. It can significantly reduce the thermal effect on the surface of various materials and greatly improve the processing accuracy.

It is also a newly developed laser processing technology. Because the traditional laser marking machine uses laser as a hot processing technology, the improvement space in fineness has a limited development. However, the ultraviolet laser marking machine uses a cold processing technology, so the fineness and thermal impact are minimized, which is a great leap in laser technology.

✧ Application Advantages


UV laser marking machine with its unique low-power laser beam, especially adapted to the high-end market of ultra-fine processing.

It is mainly used for electronic components, key fine marking, various glasses, TFT, LCD screen, plasma screen, wafer ceramic, monocrystalline silicon, IC crystal. Marking surface treatment of sapphire, polymer film and other materials.

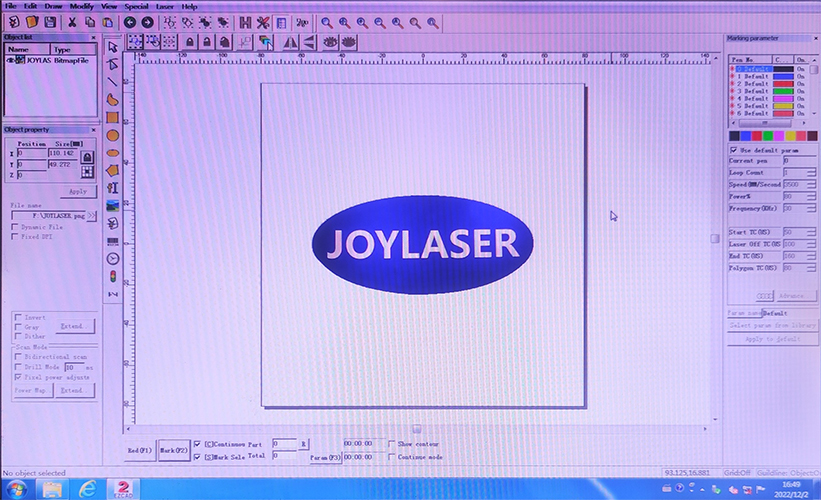

✧ Operation Interface

The software of JOYLASER marking machine needs to be used in conjunction with the hardware of the laser marking control card.
It supports various mainstream computer operating systems, multiple languages, and software secondary development.

It also supports common bar code and QR code , Code 39, Codabar, EAN, UPC, DATAMATRIX, QR CODE, etc.

There are also powerful graphics, bitmaps, vector maps, and text drawing and editing operations can also draw their own patterns.

✧ Technical Parameter

Equipment model JZ-UV3 JZ-UV5 JZ-UV10 JZ-UV15
Laser type UV laser
Laser wavelength 355nm
Laser frequency 20-150KHz
Engraving range 70mm * 70mm/ 110mm * 110mm / 150mm * 150mm
Carving line speed ≤7000mm/s
Minimum line width 0.01mm
Minimum character > 0.2mm
Working voltage AC110V-220V/50-60Hz
Cooling mode Water cooling and air cooling

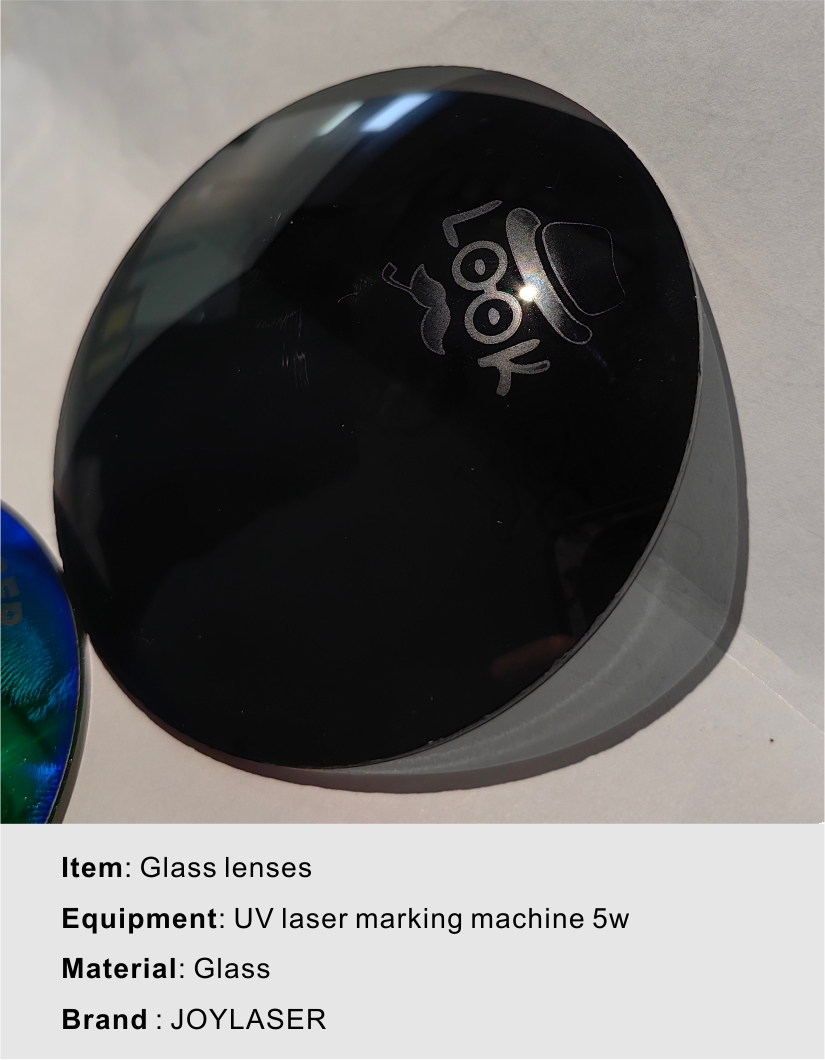

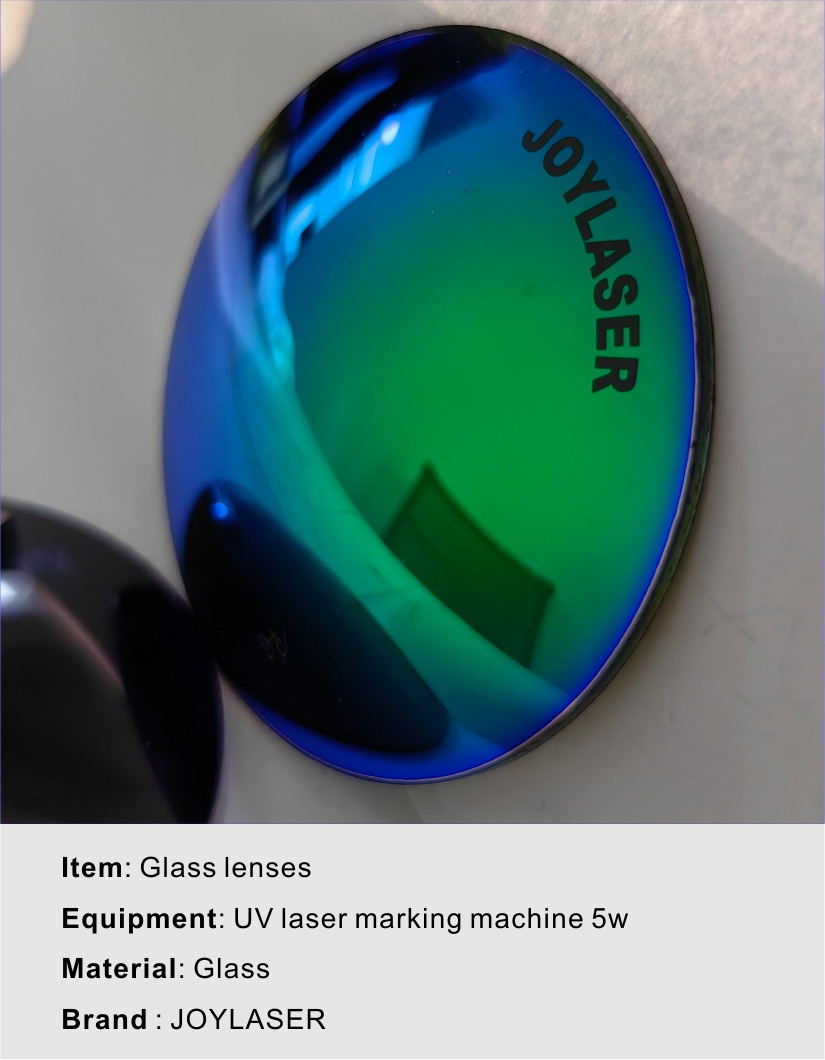

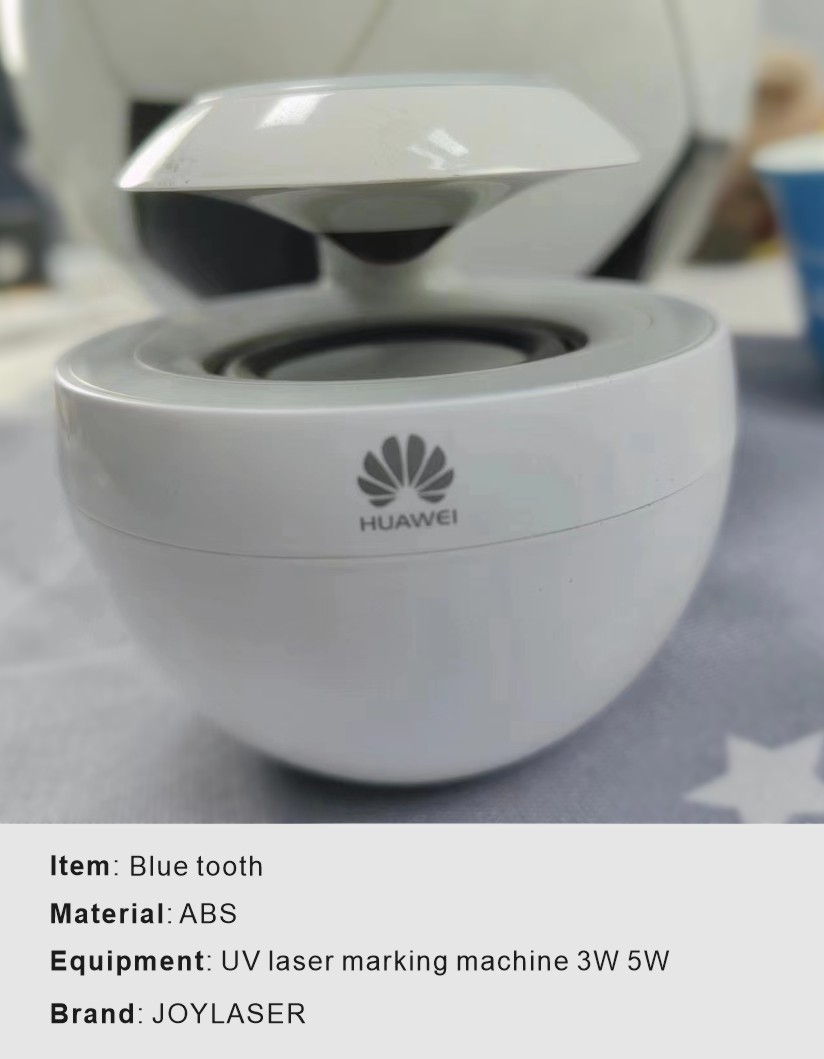

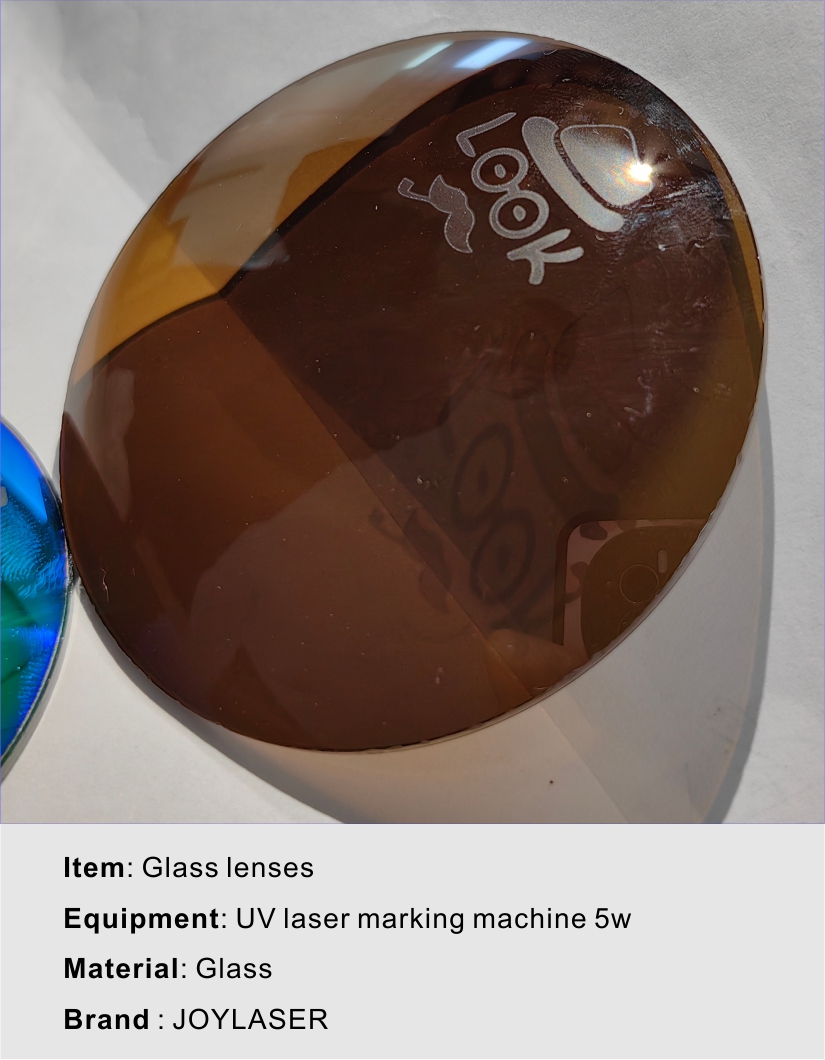

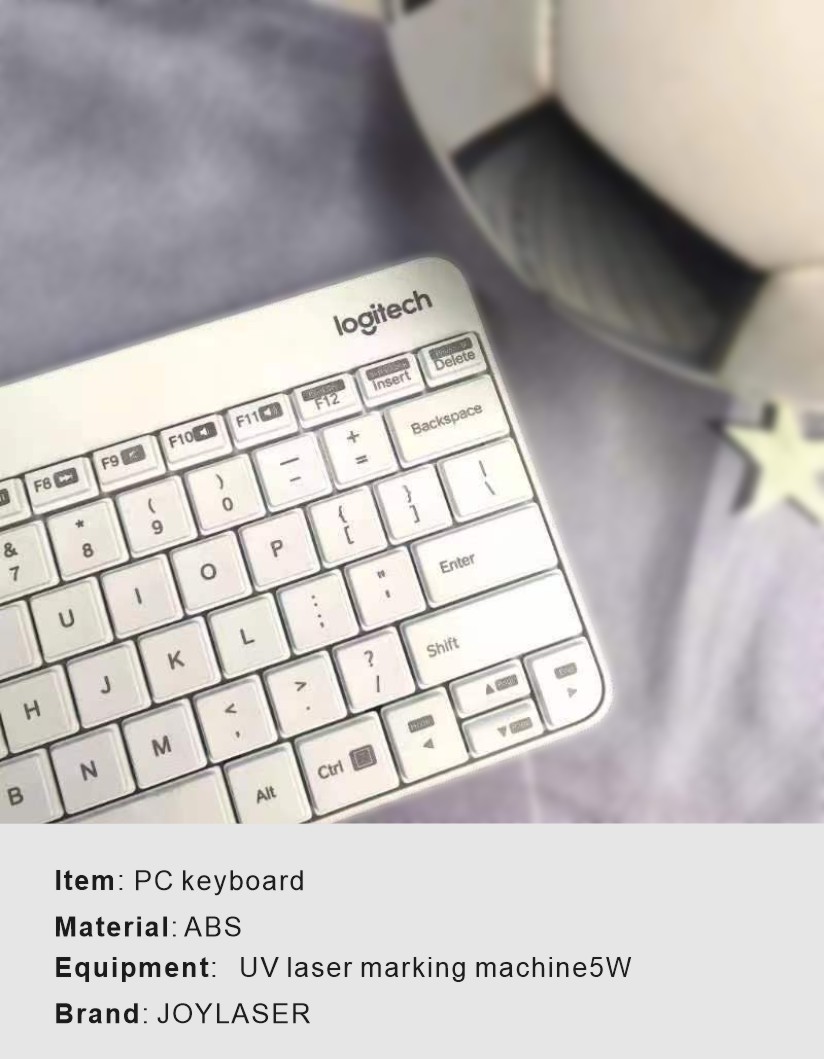

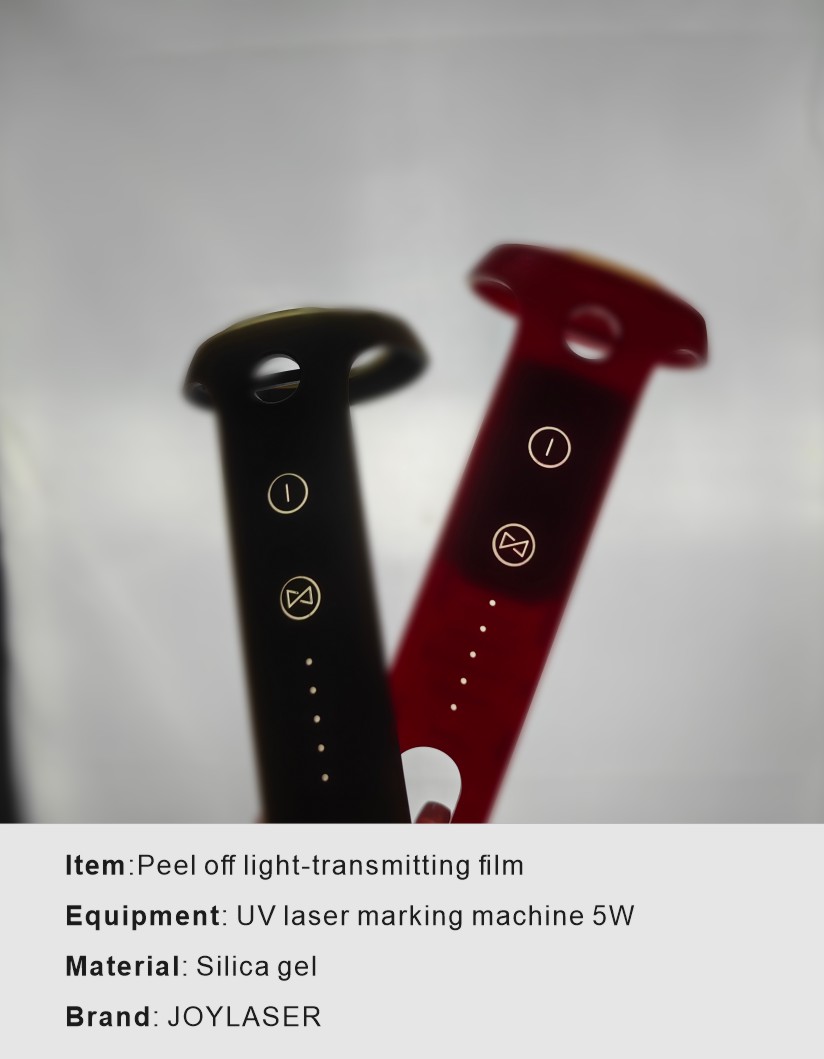

✧ Sample Of Product

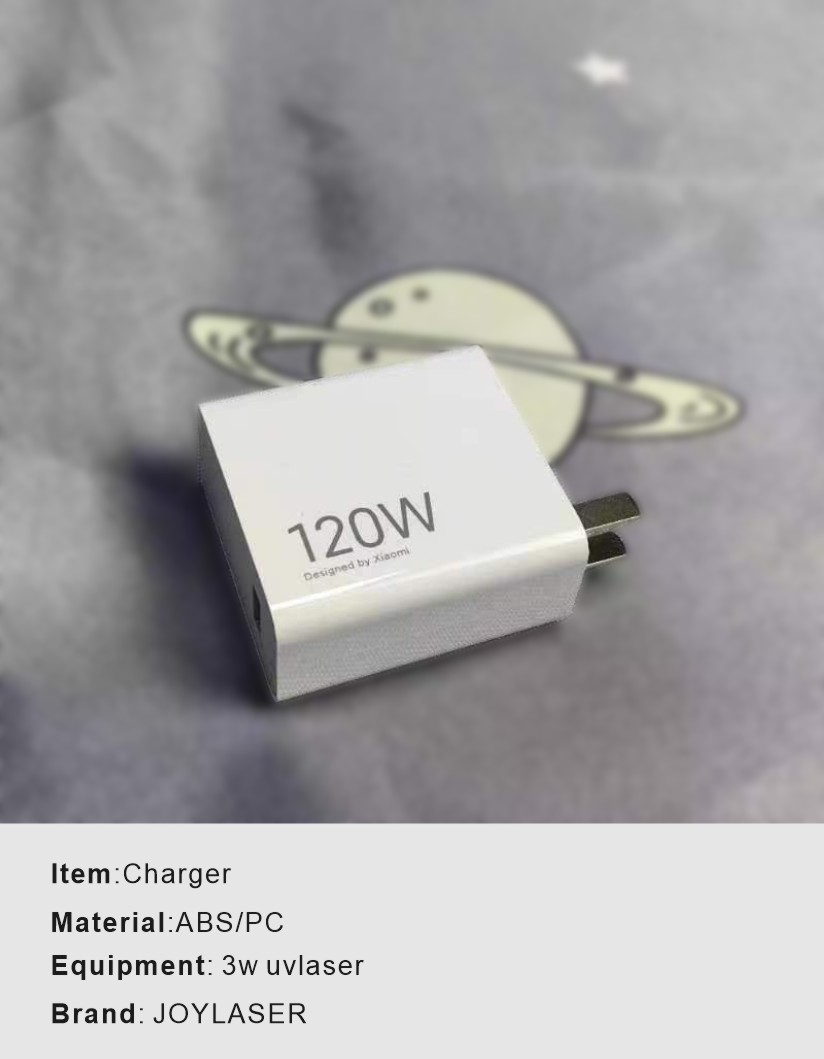

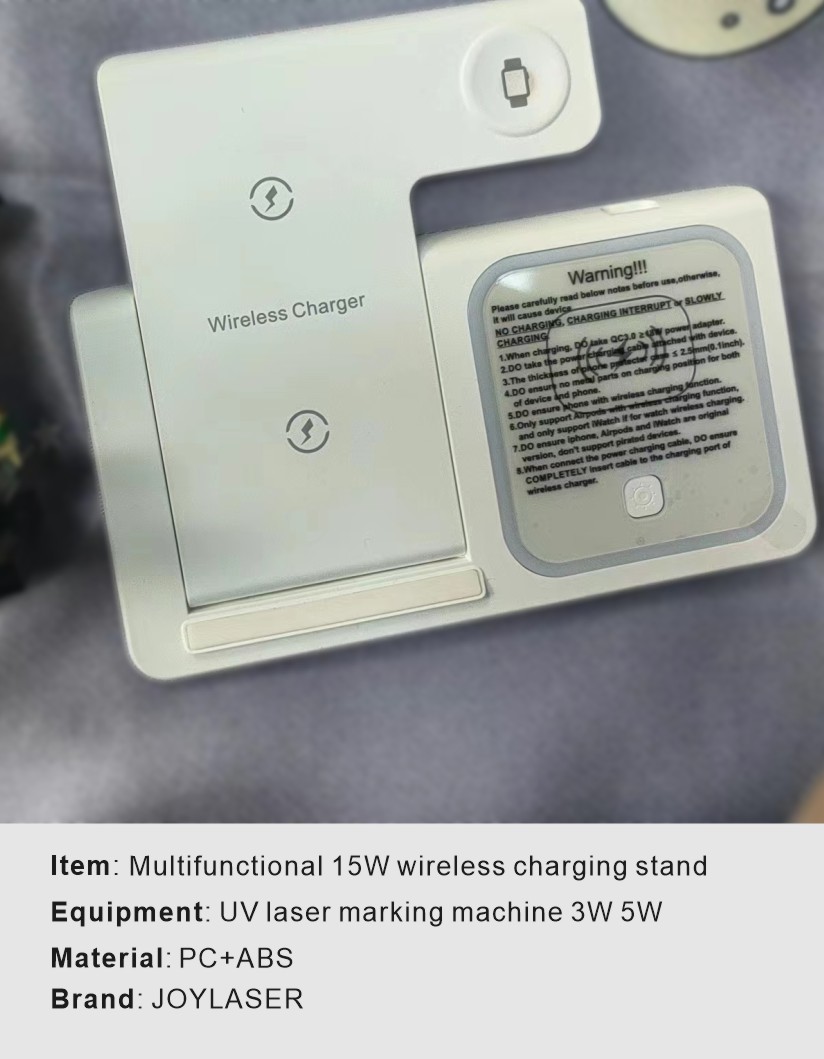

(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories,

mobile phone accessories (mobile phone screen, LCD screen) and communication products.

(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace,

military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.

(3) Pharmaceutical, food, beverage and cosmetics industry.

(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or

engraving, clocks and watches and glasses.

(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface

processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
